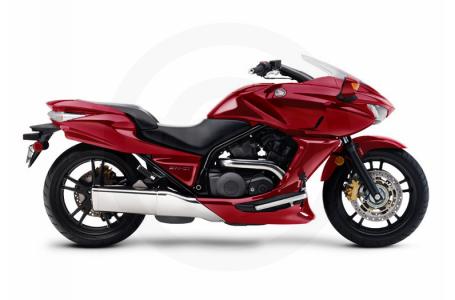

2009 Honda DN-01
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Honda's stunning new DN-01 is in a class of its own—the world's first crossover bike. Styled like a sportbike, but offering Honda's radical new HFT Transmission, it's an automatic unlike anything you've ever seen. You can shift it into six preset ratios, or you can let it function as a stepless, no-shifting Constantly Variable Transmission, or CVT. The DN-01 is a perfect choice if you're looking to get into motorcycling or if you're just a long-time rider who wants to be on the most cutting-edge bike out there.

    ENGINE
    • Engine Type: 680cc liquid-cooled 52° V-Twin
    • Bore and Stroke: 81mm x 66mm
    • Induction: PGM-FI with automatic enrichment circuit, 40mm throttle bodies and 12-hole injectors
    • Ignition: Digital transistorized with electronic advance
    • Compression Ratio: 10.0:1
    • Valve Train: SOHC; four valves per cylinder
    DRIVE TRAIN
    • Transmission: HFT continuously variable, hydromechanical two-mode automatic with six-speed manual mode.
    • Final Drive: Shaft
    CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 41mm telescopic fork with 4.2 inches travel
    • Rear Suspension: Pro Arm single-side swingarm with single shock, seven-position spring preload adjustability; 4.7 inches travel
    • Front Brake: Combined ABS with dual full-floating 296mm discs and three-piston calipers
    • Rear Brake: Combined ABS with single 276mm disc and three-piston caliper
    • Front Tire: 130/70 ZR17 radial
    • Rear Tire: 190/50 ZR17 radial
    DIMENSIONS
    • Rake: (Caster Angle): 28.5°
    • Trail: 114mm (4.5 inches)
    • Wheelbase: 63.2 inches
    • Seat Height: 27.2 inches
    • Curb Weight: 595 lbs (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
    • Fuel Capacity: 4.0 gallons, including .08-gallon reserve
    FACTORY WARRANTY INFORMATION
    • One Year: Unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

    Specifications

    Engine
    Engine Type 52° V-Twin
    Displacement 680 cc
    Bore and Stroke 81 x 66 mm
    Cooling Liquid-cooled
    Compression Ratio 10.0:1
    Fuel System PGM-FI with automatic enrichment circuit, 40 mm throttle bodies and 12-hole injectors
    Ignition Digital transistorized with electronic advance
    Chassis
    Front Suspension 41 mm telescopic fork; Travel: 4.2 in.
    Front Brakes Combined ABS with dual full-floating 296 mm discs and three-piston calipers
    Front Tire 130/70 ZR17 radial
    Rear Suspension Pro Arm single-side swingarm with single shock, seven-position spring preload adjustability; Travel: 4.7 in.
    Rear Brakes Combined ABS with single 276 mm disc and three-piston caliper
    Rear Tire 190/50 ZR17 radial
    Dimensions
    Dry Weight 595 lbs. (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
    Fuel Capacity 4.0 gal. (including .08 gal. reserve)
    Wheelbase 63.2 in.
    Seat Height 27.2 in.
    Trail 4.5 in. (114 mm)
    Rake 28.5° Caster Angle
    Transmission
    Transmission HFT continuously variable, hydromechanical two-mode automatic with six-speed manual mode
    Final Drive Shaft
    General
    Colors Candy Dark Red, Black
    Warranty One Year: Unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan

    Compare Models

    		 Print








    Year 2009
    Manufacturer Honda
    Model DN-01
    Style Cruiser
    MSRP* $15,599.00
    Chassis
    Front Suspension 41 mm telescopic fork; Travel: 4.2 in.
    Front Brakes Combined ABS with dual full-floating 296 mm discs and three-piston calipers
    Front Tire 130/70 ZR17 radial
    Rear Suspension Pro Arm single-side swingarm with single shock, seven-position spring preload adjustability; Travel: 4.7 in.
    Rear Brakes Combined ABS with single 276 mm disc and three-piston caliper
    Rear Tire 190/50 ZR17 radial
    Dimensions
    Dry Weight 595 lbs. (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
    Fuel Capacity 4.0 gal. (including .08 gal. reserve)
    Wheelbase 63.2 in.
    MPG
    Seat Height 27.2 in.
    Trail 4.5 in. (114 mm)
    Rake 28.5° Caster Angle
    Engine
    Engine Type 52° V-Twin
    Displacement 680 cc
    Bore and Stroke 81 x 66 mm
    Cooling Liquid-cooled
    Compression Ratio 10.0:1
    Fuel System PGM-FI with automatic enrichment circuit, 40 mm throttle bodies and 12-hole injectors
    Ignition Digital transistorized with electronic advance
    General
    Speedometer
    Tachometer
    Odometer
    Colors Candy Dark Red, Black
    Warranty One Year: Unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan
    Transmission
    Transmission HFT continuously variable, hydromechanical two-mode automatic with six-speed manual mode
    Final Drive Shaft
